GENERAL DESCRIPTION:

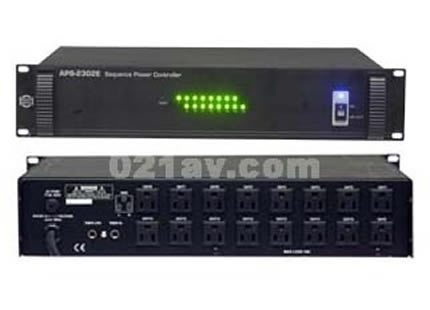

■ It is essential for PA and other system power equipments,
effectively eliminate the POP sound when switching ON/OFF.
■ Switch on/off the controlled power equipment per 0.5 second
from 1 to 16 or 16 to 1 in order.
■ Automatic/Manual controlled by APS-2303E Weekly
Programmable Timer.
■ Features with timing input and output jack, which can output
short-circuit signal to control other units when receiving external
signal.
■ LED indicator for each output channel.
■ Maximum capacity 4.0KW.
FEATURES:
Model
SEQUENCE POWER CONTROLLER
Channel
16
Step time
0.5 second
Timing input signal
Short-circuit signal
Output signal
Short-circuit signal
Max. current per channel
15A
Power supply
AC 110~120V/ 220~240V, 60Hz/ 50Hz
Dimensions(W*H*D)
480*88*370mm
Gross weight
11.2kg
Net weight
7.55kg
