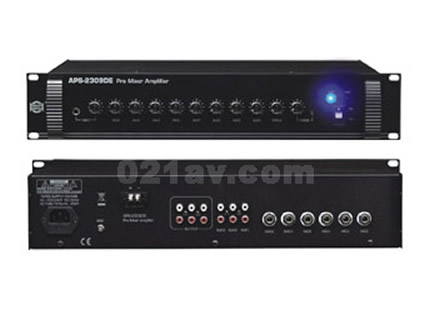

APS-2309DE (Pre Mixer Amplifier; DC 24V) FEATURES: Power supply
GENERAL DESCRIPTION:
■ With DC 24V function
■ MIC × 5, AUX × 3 and EMC inputs × 2
■ Volume control and tone controls
■ Built-in chime, muting and priority function
■ High S/N ratio and noiseless
Model
Pre Mixer Amplifier
AC 110~120V / 220~240V, 60Hz / 50Hz
DC 24V
Input sensitivity
MIC1-MIC5: 600Ω, 1.8mV, unbalanced
Output level
600Ω / 1V
Frequency response
20Hz~20kHz
S/N ratio
MIC 80dB, AUX 85dB
Tone control
Bass:+/-10dB at 100Hz
Treble: +/-10dB at 10kHz
Dimensions (W*H*D)
483*88*370mm
Gross weight
11kg
Net weight
7.8kg
