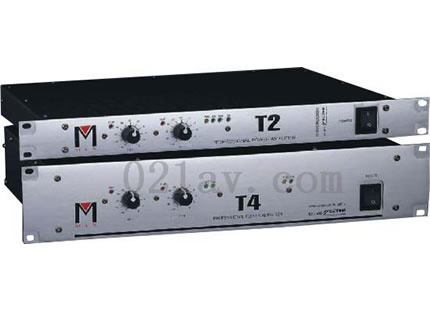

T SERIES POWER AMPLIFIER (T-4)
■OUTPUT POWER STEREO 8 OHMS:130W+130W
TA 1KHz THD<=0.1% 4 OHMS:200W+200W
■FREQUENCY RESPONSE:10HZ-50K Hz -1.5dB
■SIGNAL/NOISE RATIO A-WEIGHTED RMS >85dB
■DIMENSIONS (WXDXH)mm 483x270x88
■OUTPUT POWER STEREO 8 OHMS:130W+130W
TA 1KHz THD<=0.1% 4 OHMS:200W+200W
■FREQUENCY RESPONSE:10HZ-50K Hz -1.5dB
■SIGNAL/NOISE RATIO A-WEIGHTED RMS >85dB
■DIMENSIONS (WXDXH)mm 483x270x88
|
MODEL |
T4 | ||||||||||||||||
|
| ||||||||||||||||
|
FREQUENCY RESPONSE |
10HZ-50K Hz -1.5dB | ||||||||||||||||
|
INPUT SENSITIVITY |
0.77V/26 dB/1.4V | ||||||||||||||||
|
MAXIMUM INPUT LEVEL |
21dBV/9V | ||||||||||||||||
|
INPUT IMPEDANCE ACTIVE BALANCED |
20K OHMS | ||||||||||||||||
|
SIGNAL/NOISE RATIO A-WEIGHTED RMS |
>85dB | ||||||||||||||||
|
CROSSTALK AT RATED OUTPUT POWER 8 OHMS 1KHz |
>70dB | ||||||||||||||||
|
DAMPING FACTOR f=1KHz 8 OHMS |
>150 | ||||||||||||||||
|
SLEW RATE INTEMAL |
40V/US | ||||||||||||||||
|
PROTECTION |
SHORT CIRCUIT CURRENT LIMITE LIMITER,THERMAL, CUT OFF, P D, DC FAULT,AC LINEFUSE, OWER UP/DOWN TRANSIENTS SLOW START | ||||||||||||||||
|
INDICATORS |
POWER(GREEN) PROTECT(YELLOW) CLIP(RED) | ||||||||||||||||
|
|
BRIDGE(GREEN) PARALLEL(GRE EN) | ||||||||||||||||
|
COOLING |
WITHOUT FAN | ||||||||||||||||
|
FRONT PANEL CONTROLS |
LEVEL ACH, BCH POWER SW ITCH | ||||||||||||||||
|
REAR PANEL CONTROLS |
STEREO/BRIDGE/PARALLEL MODE SWITCH,0.77V/26dB/1.4V | ||||||||||||||||
|
|
INPUT SENSITIVITY SWITCH,GRO UND/LIFT SWITCH | ||||||||||||||||
|
CONNECTOR |
BAL XLR INPUT, BAL1/4INPUT, 5 WAY BINDING ,POST SPEAKON | ||||||||||||||||
|
POWER CONSUMPTION HALF POWER 8 OHMS |
200W | ||||||||||||||||
|
POWER SUPPLY |
115V/230V 50-60Hz | ||||||||||||||||
|
DIMENSIONS (WXDXH)mm |
483x270x88 |
