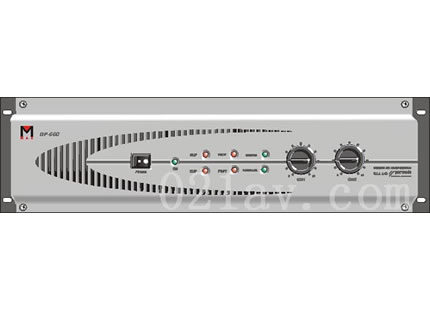

DP SERIES POWER AMPLIFIER (DP-660)
■OUTPUT POWER STEREO 8 OHMS:550W+550W
■TA1KHZ THD<=0.1% 4 OHMS:820W+820W
■FREQUENCY RESPONSE :20Hz-20KHz ±0.15dB
■SIGNAL/NOISE RATIO A -WEIGHTED RMS :>95dB
■POWER CONSUMPTION HALF POWER 8 OHMS :1000W
■DIMENSIONS (WxDxH)mm :482x425x132mm
| MODEL | DP660 | ||||
|
| ||||
| FREQUENCY RESPONSE |
20Hz-20KHz ±0.15dB | ||||
| INPUT SENSITIVITY |
0.77V/26dB/1.4V | ||||
| MAXIMUM INPUT LEVEL |
21dBV/9V | ||||
| INPUT IMPEDANCE ACTIVE BALANCED |
20K OHMS | ||||
| SIGNAL/NOISE RATIO A -WEIGHTED RMS |
>95dB | ||||
| CROSSTALK AT RATED OUTPUT POWER 8 OHM 1KHZ |
>70dB | ||||
| DAMPING FACTOR f=1KHZ 8 OHMS |
>800 | ||||
| SLEW RATE INTEMAL |
25V/US | ||||
| PROTECTION |
SHORT CIRCUIT, CURRENT LIMITED DC FAULT, AC LINE FUSE, LIMITER, THERMAL CUT OFF, POWER UP/DOWN TRANSIENTS, SLOW START | ||||
| INDICATORS |
POWER(GREEN) PROTECT(YELLOW) CLIP(RED) BRIDGE(GREEN) | ||||
| COOLING |
VARIABLE SPEED FAN | ||||
| FRONT PANEL CONTROLS |
LEVEL ACH, BCH POWER SWITCH | ||||
| REAR PANEL CONTROLS |
STEREO/BRIDGED/PARALLEL MODE SWITCH,0.77V,26dB,1.44V INPUT SENSITIVITY SWITCH, GROUND/LEFT SWITCH | ||||
| CONNECTOR |
BAL XLR INPUT,BAL1/4 INPUT,5 WAY BINDING, POST SPEAKON | ||||
| POWER CONSUMPTION HALF POWER 8 OHMS |
1000W | ||||
| POWER SUPPLY |
115V/230V 50-60HZ | ||||
| DIMENSIONS (WxDxH)mm |
482x425x132mm | ||||
