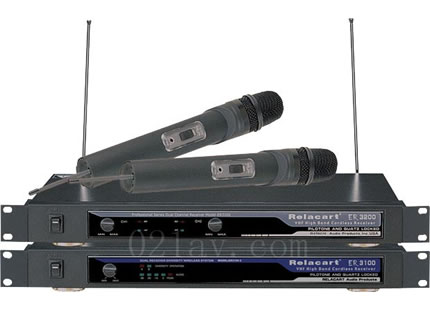

力卡无线话筒　Relacart　ER3100/ER3200

ER-3100一拖一分集无线接收机
ER-3200一拖一分集无线接收机
    ER系列3200分集接收机采用分集接收无线电波方式，其稳定音质的分集接收方式，被广大用户肯定、认同。在接收机上装备两套天线输入电路，可以通过两支天线，同时麦克风信号，然后根据接收状态，自动比较、切换接收良好的信号。从而解决了断音、杂音干扰等令人烦恼的现象。
　　ER3100具有1/14英寸（TRS）和平衡卡侬（XLR）型两种输出方式的接插件，并有30dB的电平调节范围。XLR型输出端带有高/低电平开关，更有约60dB的控制范围。可以同任何电平匹配起来。精密设计加工的射频电路同压缩扩张电路结合起来，得以提供超卓的105dB信号噪声比（A线计权，108dB）。外接静噪（Squelch）控制使用户可以在调节接收机灵敏度，同时保持两个通道之间由工厂预校准的平衡。可分离的带接地交流电源线，将外部电网负同内部电源连接起来，使之可以在115V或235V的电网电压下工作，因此能适合世界各地使用。

SPECIFICATION
■Frequency Range(Standard Frequencis):210-260MHz
■Work Range:up to 80 meters under indeal conditions;usually somewhat less in typical applications
■Emission/Modulation:Direct FM,crystalcontrolled,25KHz deviation
■Frequency Response:60Hz to 14KHz,±1.5dB,30Hz to 16KHz,±3dB
■Harmoic Distortio:0.5% maximum,below transmitter limiting;0.25% typical at 1KHz
■Dynamic Range:105dB
■Ultimate S/N(processed,30KHz bandwidth):100dB(flat)minimum(105dB typical A-weighted)
■Audio processor: 2:1 logarithmic compressor and expander
■Operationg Temperature:-20℃ to+50℃
DIVERSITY RECEIVER
■Receiver type :single-frequency,single-conversion,super heterodyne FM
■Image Rejection:70dB,typical

“Relacart力卡”主营品牌系列产品：各类音频会议系统，有线无线麦克风,他们核心业务是为集成商、工程商等合作伙伴提供会议室完整解决方案，为渠道经销商提供专业娱乐器材设备的渠道销售服务。

广州力卡电子有限公司创建于1994年，是集研发、生产、销售为一体的专业音响器材设备制造企业。拥有现代化厂房、先进的流水生产线、齐全的精密检测设备，构建有完善的质量保证体系，公司及产品先后通过ISO9001:2000国际质量体系认证，中国国家强制性产品3C认证。

Relacart is the company founded in 1994 by Professionals who wanted to make difference to things done before. Relacart aims at bringing things of future technology for today. Relacart is dedicated in designing, manufacturing, marketing and distribution professional audio products. We have started from Microphone, Conference System and Mixer. Now we are doing production of Digital wireless Microphone, Digital Wireless Conference System, Tour Guide System, Public Address System, Etc. We have full equipped sound test lab to provide you all type of Test and Repots. We have most advance equipments to produce Hi- end products. We are using German SMT process automatic plant in production. We have Q.C department to keep a close eye on all production line. Each products will go through Q.C Test before go for final packing. We have all advanced testing equipment such as Signal Emitter; network Analyzer, Spectrum Analyzer, Radio communications test sets, Audio Analyzer, Audi Exam System & etc.
