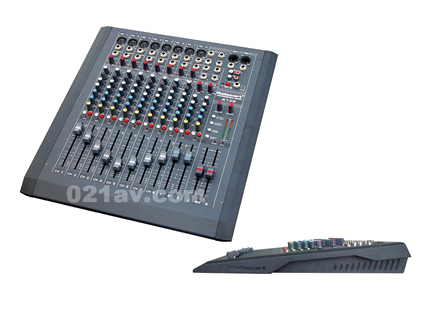

X120 12调音台
X160 16路调音台
X系列无编组调音台有如下优点：时常的外观，小巧的设计，功能齐全。适用于录音室、会议厅、学校广播室等场所。
X Portable Mixers Series has advantage as follow：smart appearance,small size,full functions,It is suitable in recordings tudio,conference room,school broadcasing.
主要性能和特点：
■ 8/12路单通道，2路立体声输入
■ 电路板采用双面SMT贴片技术，使性能稳定可靠
■ 采用ALPS 100mm高精度推子衰减器
■ 专业断点输入用于外部信号处理
■ 独特的选听设计，用于单独监听控制单一的通道电平
■ +48V幻像电源
■ 3频段均衡器，MF频段的范围是从140Hz到3KHz频点扫描
features
■ 8/12 mono ,2 stereo input
■ Double layer PCB with SMT ensures the reliability
■ Adopt ALPS Fader
■ Professional INSERT points for external processing
■ Special SOLO system on separate track with control of individual channel level
■ +48V phantom power
■ 3 band EQ ,MF sweeping from 140 Hz to 3 KHz
Technical Specifications
Maximum Output Level(蕞大输出电平)：21dBm(1kHz,THD=0.5%)
Residual Noise(剩余噪声)：-81dB
S/N(信噪比)：-84dB
Equivalent Input Noise(等效输入噪声)：-115dBm
Headphone Power(耳机输出功率)：260mw(1KHz,THD=0.5%,200Ω)
Equalization(均衡器)：
Low(低)：80Hz±15dB
Mid(中)：140KHz~3KHz±15dB
High(高)：12KHz±15dB
Gain Control(增益控制)：
Mono(单通道)：-55dB~0dB
Stereo(立体声)：-25dB ~0dB
Frequency Response(频率响应)：20Hz~20KHz(+1dB,-3dB)
THD+N(总谐波失真＋噪声)：≤0.05%(1KHz,0.775V)
