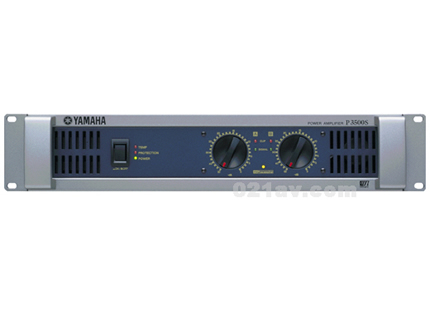

雅马哈功放　YAMAHA　P3500S

More on this product: 产品介绍; 产品价格; 相似产品

产品介绍

■ YS处理(雅马哈扬声器处理)具有与本公司俱乐部系列扬声器完全匹配的性能，从而使整个系统获得最佳性能。
■ 各个通道中独立、可扫描高／低通滤波器可优化超低音扬声器或整个系统的输出，从而在任何系统中都可获得最高音频品质和性能。
■ 重量轻使得运输和组装都非常容易。
■ 由于每个通道都采用Neutrik speakon输出插口和1／4英寸输出插口，再加上5路接线柱，可提供杰出的连接灵活性。
■ 专门设计的底盘，可提供额外的耐用性和强度。
■ 所提供的综合保护措施包括电源开／关静音、Dc检测、热保护、电流l限制和衰减器保护罩。
■ Yamaha独特的EEEngine(引擎)技术使得系统能够异常高效地运行，通过大幅降低Ac电能消耗和降低发热，最终降低运行成本。

General specifications

			P7000S	P5000S	P3500S	P2500S
Output power	1kHz THD+N=1%	8ohms	750Wx2	525Wx2	390Wx2	275Wx2
		4ohms	1100Wx2	750Wx2	590Wx2	390Wx2
		8ohmsbridge	2200W	1500W	1180W	780W
	20Hz-20kHz THD+N=0.1%	8ohms * European model	700Wx2 650W*x2	500Wx2	350Wx2	250Wx2
		4ohms	950Wx2	700Wx2	450Wx2	310Wx2
		8ohmsbridge	1900W	1400W	900W	620W
	1kHz (20ms non-clip)	2ohms	1600Wx2	1300Wx2	1000Wx2	650Wx2
		4ohmsbridge	3200W	2600W	2000W	1300W
Power bandwidth		half power	10Hz-40kHz (THD+N=0.5%)
THD+N	20Hz-20kHz	half power	Less than 0.1%
Inter moduration distortion			Less than 0.1% (60Hz:7kHz, 4:1, Half Power)
Frequency response	Po=1W, RL=8ohms		0dB, +0.5dB, -1dB / 20Hz-50kHz
Channel separation	Half Power RL=8ohms Att. Max, Input 600ohmsshunt		≥70dB1kHz
Residual noise	Att. Min,	(DIN AUDIO)	≤-70dBu20Hz-20kHz
S/N ratio		(DIN AUDIO)	104dB	103dB	102dB	100dB
Damping factor		RL=8ohms 1kHz	≥350		≥200
Input sensitivity	Att. Max	@8ohms	+8dB	+6dB	+4dB	+3dB
Maximum voltage gain	Att. Max		32.1dB
Maximum input voltage			+22dB
Actual load impedance			30kohms(balance), 15kohms(unbalance)
Control	Front panel		POWER switch Attenuater(31 position) x 2
	Rear panel		MODE switch(STEREO/BRIDGE/PARALLEL)
			FILTER switch(SUB WOOFER/LOW CUT/OFF) x 2 FRQ.CONTROL (25-150Hz) YSProcessing switch(ON/OFF)
Connector	Input		XLR3-32 type /ch(balance) TRS Phone /ch(unbalance)
	Output		SPEAKON /ch 5way binding post /ch 1/4 Phone /ch(unbalance)
Indicator	POWER		x 1(Green/Red)
	PROTECTION		x 1(Red)
	TEMP		x 1(Red), Heatsink temp ≥ 85degrees celsius
	YSProcessing		x 1(Yellow)
	SIGNAL		x 2(Green)
	CLIP		x 2(Red)
Load protection			POWER switch ON/OFF mute
			DC-fault power supply shutdown		DC-fault output cut
Amplifier protection			Thermal (Heatsink temp≥90degrees celsius VI limitter (RL≤1ohms)
Limitter circuit			Clip limiting comp.:THD≥0.5%
Cooling			Dual Variable-speed fan		Single Variable-speed fan
Power requirements			Japan: AC100V, 50/60Hz North America: AC120V, 60Hz Europe: 230V, 50Hz Australia: 240V, 50Hz
Idle power consumption			35W	35W	30W	25W
Power consumption			650W	500W	450W	320W
Dimensions			480W x 88H x 456Dmm
Weight			12kg		15kg	14kg
